Nucleo

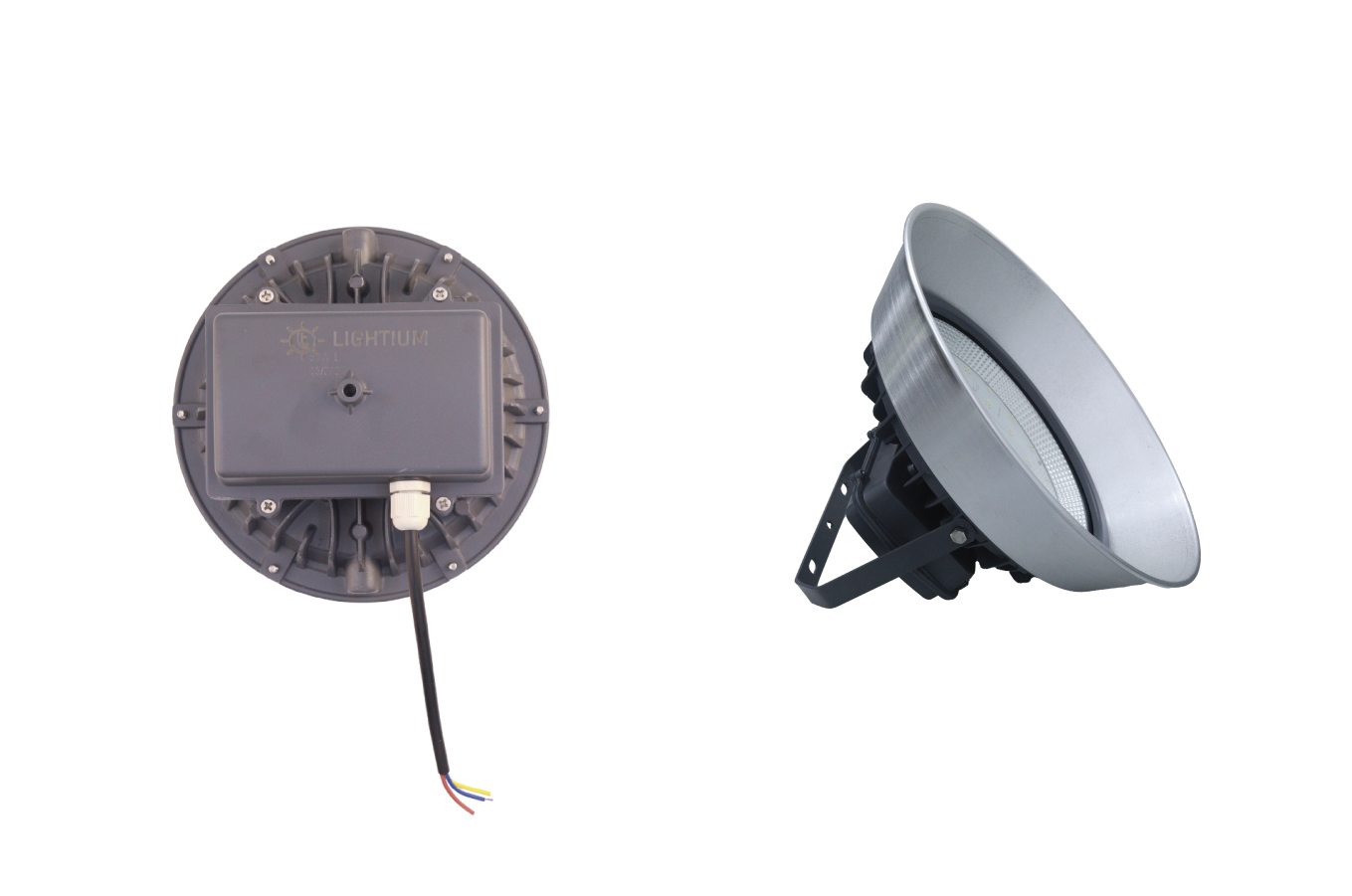

Led Highbay Light

Watts (W) Volts (V) Colour Temp (K) Total Lumens (Im) Total Lumens (Im)
50 240 6500 5000 90o
72 240 6500 7200 90o
100 240 6500 1000 90o
150 240 6500 15000 90o
200 240 6500 20000 90o
250 240 6500 25000 90o
300 240 6500 30000 90o

Technical Specification

Type Specification
System Wattage (W) 50W - 300 W
IP Rating IP65
System Efficacy (Im/W) 100
Color Temperature (K) 4500K/6500K
CRI 80
Housing High pressure die cast aluminium
Cover Glass
Mounting Wall/Bracket
TDH <20%
PF >0.95
Operating Voltage 160-270V AC 50 Hz




Nucleo

Led Wellglass Fitting

Watts (W) Volts (V) Colour Temp (K) Total Lumens (Im) Total Lumens (Im)
30 240 6500 3000 90o
50 240 6500 5000 90o
80 240 6500 8000 90o

Technical Specification

Type Specification
System Wattage (W) 30W - 80 W
IP Rating IP65
System Efficacy (Im/W) 100
Color Temperature (K) 4500K/6500K
CRI 80
Housing High pressure die cast aluminium
Cover Glass
Mounting Wall/Bracket
TDH <20%
PF >0.95
Operating Voltage 160-270V AC 50 Hz

Get a free quote for your project. Click here.
