Led Street Light

Home Industrial Lighting Products Led Street Light
Nucleo

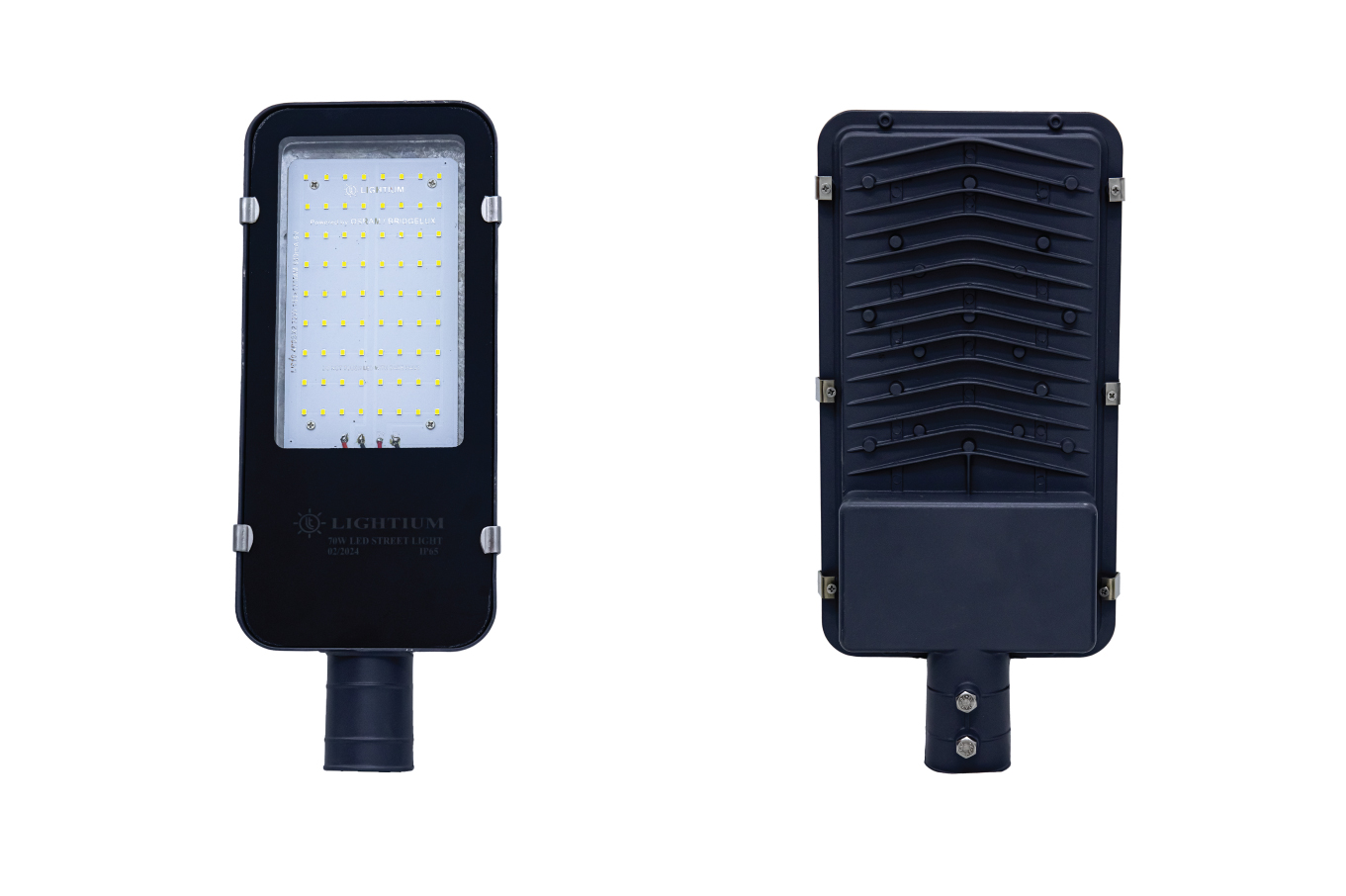

Lens Street Light

Watts (W) Volts (V) Colour Temp (K) Total Lumens (Im) Total Lumens (Im)
18 240 6500 1800 110o
24 240 6500 2400 110o
40 240 6500 3600 110o
50 240 6500 5000 110o
70 240 6500 7200 110o
100 240 6500 10000 110o

Technical Specification

Type Specification
System Wattage (W) 18W - 100 W
IP Rating IP65
System Efficacy (Im/W) 100
Color Temperature (K) 4500K/6500K
CRI 80
Housing High pressure die cast aluminium
Cover Glass
Mounting Wall/Bracket
TDH <20%
PF >0.95
Operating Voltage 160-270V AC 50 Hz


Nucleo

Glass Street Light

Watts (W) Volts (V) Colour Temp (K) Total Lumens (Im) Total Lumens (Im)
18 240 6500 1800 110o
24 240 6500 2400 110o
40 240 6500 3600 110o
50 240 6500 5000 110o
70 240 6500 7200 110o
100 240 6500 10000 110o
120 240 6500 10000 110o

Technical Specification

Type Specification
System Wattage (W) 18W - 120 W
IP Rating IP65
System Efficacy (Im/W) 100
Color Temperature (K) 4500K/6500K
CRI 80
Housing High pressure die cast aluminium
Cover Glass
Mounting Wall/Bracket
TDH <20%
PF >0.95
Operating Voltage 160-270V AC 50 Hz
